Wind Turbine Change Over  / Stop Switch

   This Wind Turbine Change Over Switch is designed to switch between the incoming 3 phase power from a wind turbine and the braking resistors which will stop your wind turbine spinning out of control in storm force winds.

The design is in the name Wind Turbine Change Over Switch, the wiring is broken ( opened ) before it is switched to the secondary source.

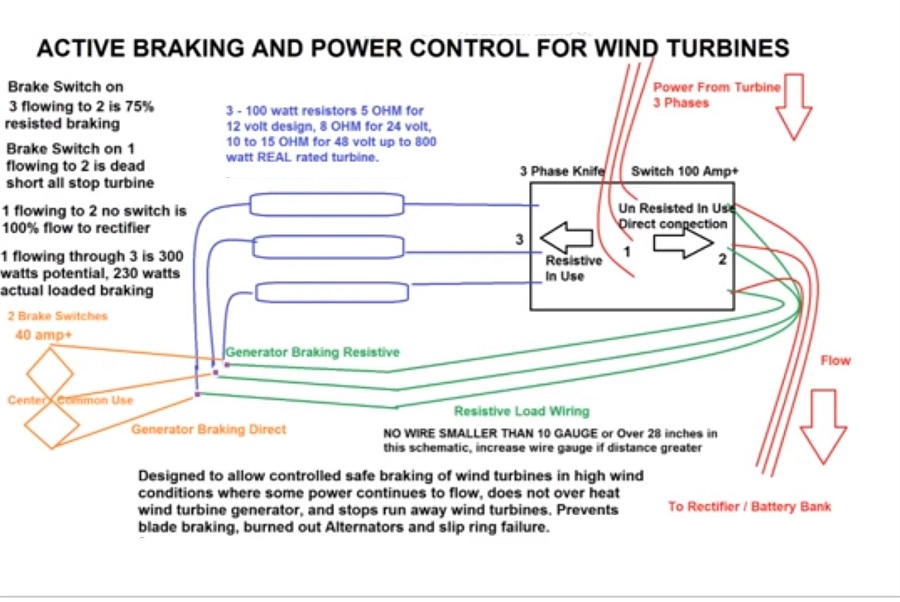

To make this into a stop switch all you need do is wire 3 tails from the wind turbine to the centre 3 connections with the output 3 wires connected on top to the Charge Controller and a bus bar connected below so that with the switch in the up position power flows and when the switch is pulled down the 3 wires are all shorted together to stop the wind turbine

Buy your Wind Turbine Change Over  / Stop Switch from CarbonFreeHeat Ireland, your Irish free delivery store.
